Well Properties: Advanced Synthetics

Well Properties: Advanced Synthetics Tab

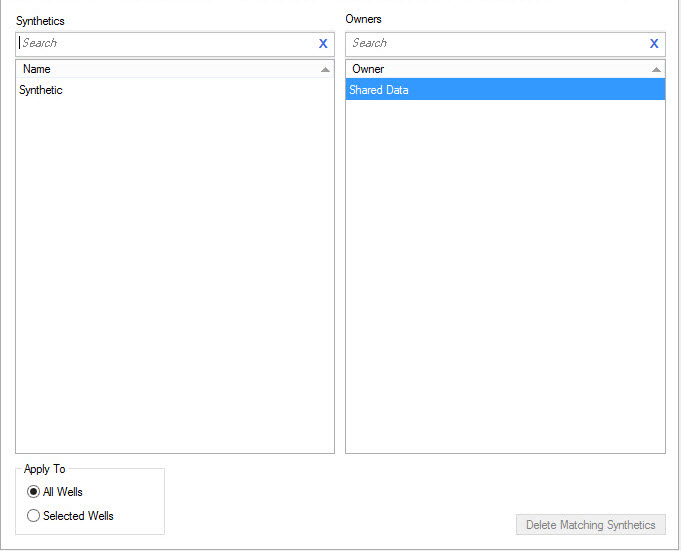

The Advanced Synthetics tab allows you to delete saved SEG-Y synthetics from multiple wells in one operation.

Selection Lists

Before you can delete synthetics you need to select values from the Name and Owner lists. You can limit the information available in each list by typing in the search bar.

Synthetics:A list of the names of all saved SEG-Y synthetics in a project.

Owner: The owners associated with the project. This list is only active for users with adequate privileges.

Operations

Delete Matching Synthetics:Delete synthetics matching the selected synthetics and selected owners.

Apply To: Specifies which wells to apply the deletion to. This option is only used for the Delete Matching Synthetics operation.

All wells: Delete the synthetic curves for all wells in the database.

Selected wells: Only delete the synthetic curves for wells selected in the main well list.

Note: If you do not have adequate privileges, you cannot select from the Owner list, and will not be able to delete log curves if they do not belong to you, or the user you are impersonating.
