Grid and Contour: Contour Fault
Select this option to contour an existing fault.
-

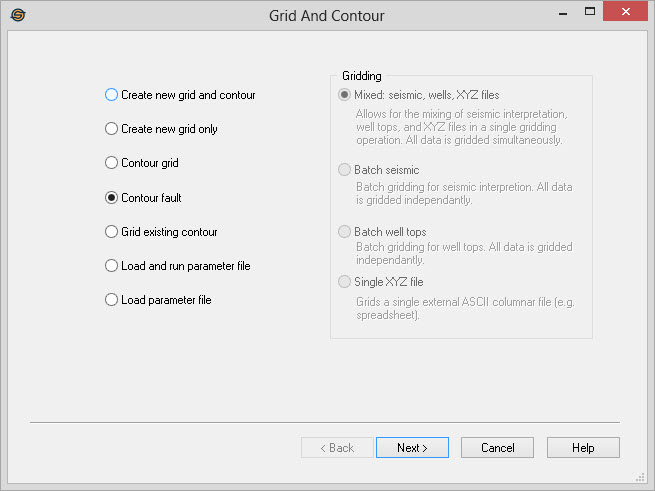

Select Contour Fault.
-
Select the Existing Fault from the list. The fault must be triangulated in order to select it.
-
Select the Contour Extents and optionally change the contour name. Compute the extents of the selected data and optionally change the minimum or maximum values used.
-
Select the Contour Interval. Specify the contour interval, the labeling interval and the size and font for the contours.
-
(Optional) Save the Parameters. Save the parameters used for the operation so that the grid can be replicated at a later date.
Contour Fault Wizard Options
