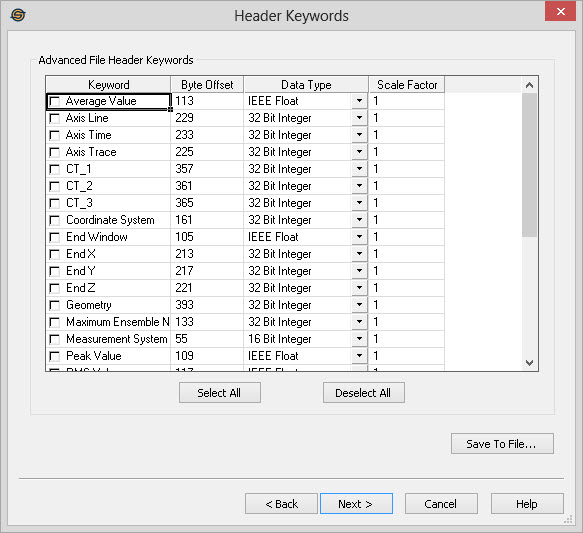

Keyword: The name of the keyword.  Place a check the box on the left to select a keyword for export, or remove the check to avoid exporting the keyword.

Byte Offset: The byte offset into the header for the keyword.  This is the destination byte location in the exported file.

Data Type: Specify the format you wish to write the keyword in.

• IEEE Float: This is the normal 32 bit floating point format used on most modern computers.
• IBM Float: IBM 32 bit floating point format.  This is the original floating point format for SEG-Y files.  Certain applications expect floating point data to be in IBM format.
• 32 Bit Integer: Normal 32 bit (4 byte) integer data.
• 16 Bit Integer: Normal 16 bit (2 byte) integer data.  Various common keywords are stored as 16 bit integers.
• 8 Bit Integer: Normal 8 bit (1 byte) integer data.  This is not a common format, and is normally only used for specifying application specific flags.

Scale Factor: Specify a scale factor to apply to a keyword before writing it to the output file.  Normally this will be left as 1, but occasionally a user might want to scale certain keywords such as the shot sequence number or the coordinate values.

Select All: A quick way to select all the keywords for export.

Deselect All: A quick way to deselect all the keywords in the list.

Save To File: Select this option to write all the selected keywords from the current page, the Basic Keywords page and the Advanced Trace Header Keywords page to the keyword file.  This will help simplify subsequent exports.  You can select the keyword file on the Keywords page.
