Well Curve Calculator: Select Data

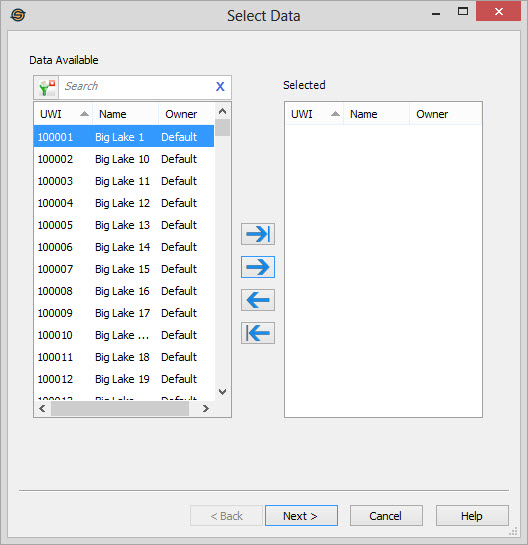

Use the Select Data page to select the wells whose data you want used in the curve calculation.

Select Wells

Select the wells whose data you want included in the curve calculation.  Left click to select a single well, or use the Ctrl key on your keyboard to select multiple wells, and then use the selection arrows to move the wells to the Selected list. Alternately, you can move a single well to the Selected list by double clicking on it, or move a group of wells by selecting them from the Basemap.

To help you make your well selections, you can sort any column by left clicking on the column header, you can apply a filter (), or you can type a search string into the search bar to limit the list using UWI, Name, or Owner information.

For additional selection and navigation options right click on the well list to access the shortcut menu.
