Grid and Contour: Select Seismic

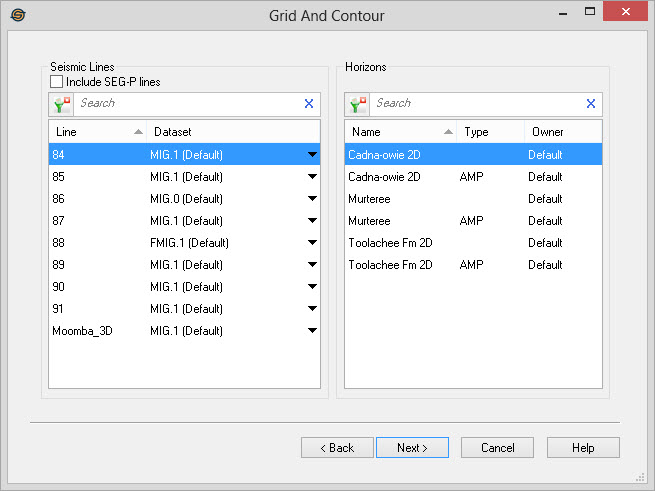

Select the Seismic Lines and the Horizons to use in the grid and contour operation.

Select Seismic Lines

Select the seismic lines whose horizons you want to grid. The working set version is listed, but alternate datasets can be selected by clicking on the down arrow in the Dataset cell. Seismic lines can be selected by left clicking, multiple files can be selected using the Ctrl key on your keyboard, and groups of files can be selected from the Basemap.

To help you make your seismic line selections, you can sort any column by left clicking on the column header, you can apply a filter (), or you can type a search string into the search bar to limit the list using Line, and Dataset information.

For additional selection and navigation options right click on the Seismic Lines list to access the shortcut menu.

Select Horizons

Select the horizons you want to grid. Horizons can be selected by left clicking, and multiple horizons can be selected using the Ctrl key on your keyboard.

To help you make your horizon selections, you can sort any column by left clicking on the column header, you can apply a filter (), or you can type a search string into the search bar to limit the list using Name, Type,or Ownerinformation.

For additional selection and navigation options right click on the Horizons list to access the shortcut menu.

Grid and Contour Wizard Options

• Select Well Tops and Sources
• Select XYZ Columnar ASCII File
• Select Gridding Technique
• Select Polygons
• Select Grid Extents
• Select Anisotropy and Search Options
• Select Residuals
• Select Contour Extents
• Select Contour Interval
• Save Parameters
