Basemap Properties: Well Curve Top Ticks

Geoscience > Main Launcher > Launch Menu > Basemap > General Properties > Well Properties > Curve Top Ticks

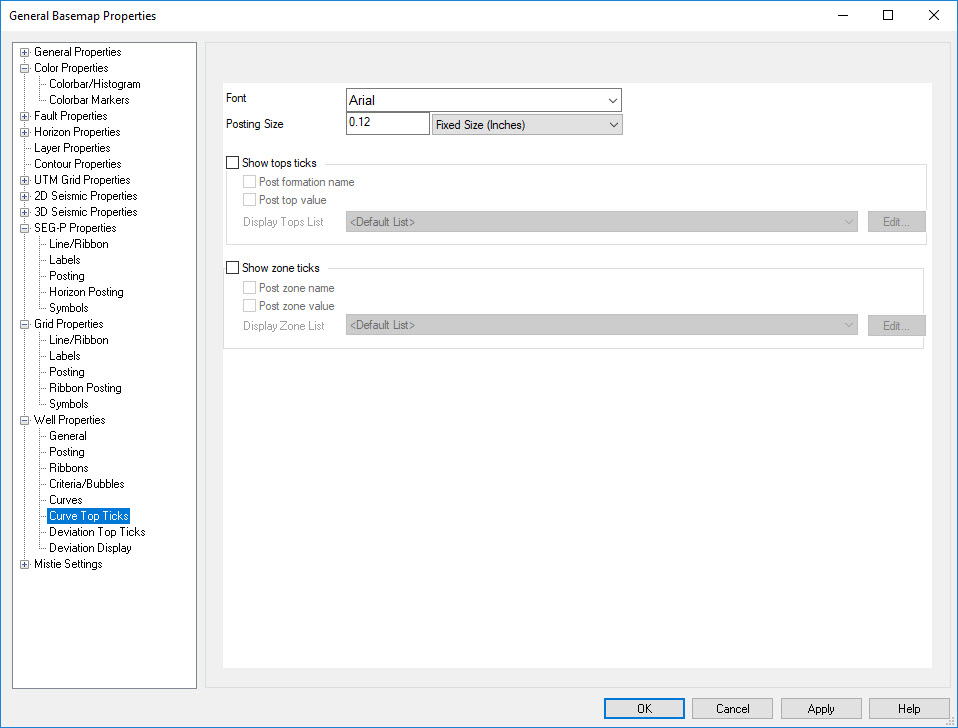

Well Properties: Curve Top Ticks

If curves are displayed on the map, you are able to add horizontal formation/top lines and zone lines on the curve. To configure curves for display, see the Curves page.

Posting Parameters

Font: Select the font for the posting.

Posting Size: Select the size for the posting.

Curve Top Ticks Options

Show Tops Ticks: Select this option to display top ticks on the log curve.

Post Formation Name: Select this option to display the formation name on the log curve.

Post Top Value: Select this option to display the formation top value on the log curve.

Display Tops List: Select the list of tops to display along with their colors. These lists are created in the Set Displayed Tops application. Click on the Edit button to edit the list of tops being displayed or to create a new list of tops.

Curve Zone Tick Options

Show Zone Ticks: Select this option to display zone ticks on the log curve.

Post Zone Name: Select this option to display the zone name on the log curve.

Post Zone Value: Select this option to display the zone value on the log curve.

Display Zone List: Select the list of zones to display along with their colors. These lists are created in the Set Displayed Zones application. Click on the Edit button to edit the list of zones being displayed or to create a new list of zones.

See the Curves Page for more information on setting up the curves to display.
