Data Loader: Load Files

Geoscience > Main Launcher > Seismic Menu > Data Loader > 2D Data Loading > Load Files

Data Loader: Load Files

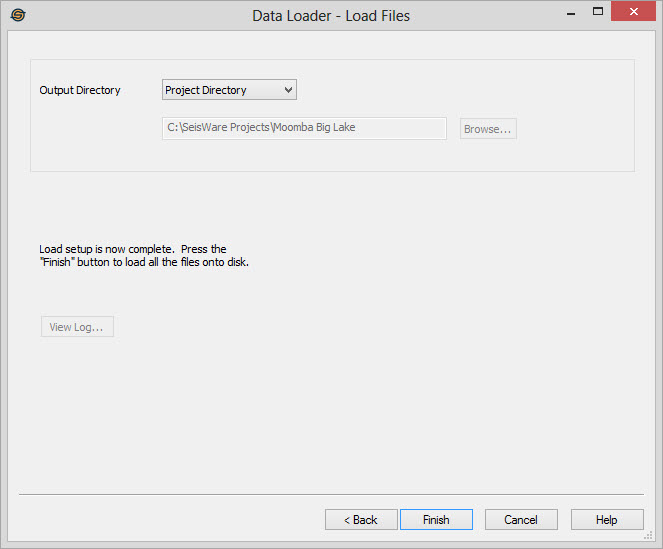

The Load Files page of the wizard allows you to finish the data loading operation. Once you've defined the Output Directory, click the button to perform the load. A progress dialog will pop up giving you progress messages during the load and allowing you to cancel the load process.

Output Options

Output Directory: Select the output location for your seismic data.

Project Directory: The SEG-Y file will be saved to your project folder. This location will appear in the directory field, but can't be edited.
Data Directory: The SEG-Y file will be saved to your data file folder. This location will appear in the directory field, but can't be edited.
Input Directory: The SEG-Y file will be saved to the original location of the file you are loading.
User Defined: The SEG-Y file will be saved to a location specified by the user. Type in a location, or click and map to the folder location.

Additional Options

View Log: Open a log of any errors that were encountered during the load process. This will only be enabled after the Finish button is clicked.

Load Files Operations

Finish: Load the data files.
