Data Loader: Specify 2D Input Files

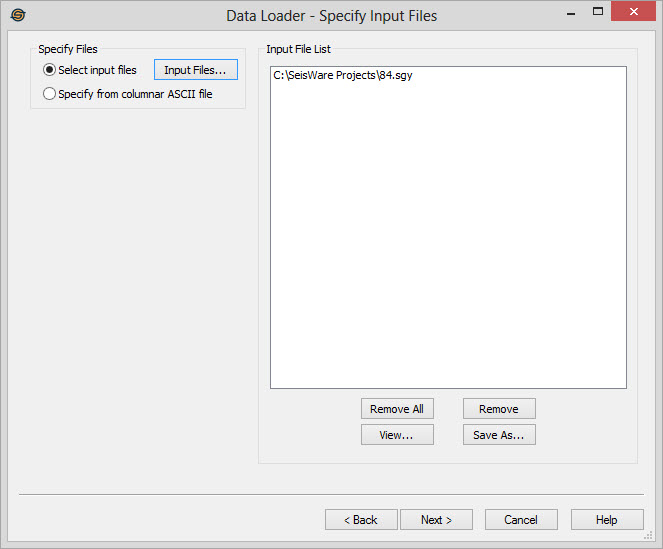

Use the Specify Input Files page to specify the 2D SEG-Y files that you wish to load, unless you are loading from a tape.

Specify Files

Select input files: Click on the "Input Files..." button to bring up a dialog that will allow you to select files for import. You may select more than one file at a time. Once selected the files will appear in the Input File List on the right.

Specify from columnar ASCII file:Toggle this on to go to the Load Columnar File page that allows you to use a saved .csv file to specify individual file parameters. This is useful for large groups of lines, that have different parameters such as version numbers, types and keyword files. You can save a .csv file and modify for use by selecting the input files and then clicking to create a file.

Input File List

This is the list of raw 2D SEG-Y files that you want to load.

Remove All: Remove all the files from the Input File List.

Remove:Remove only the selected (highlighted) files from the Input File List.

View:Opens the selected file in the Seismic Viewer.

Save As: Use this to save a .csv file of the selected list of lines for loading. This .csv file can be edited and used to specify individual file parameters when loading large groups of lines.
