Map View: Toolbars

There are five toolbars in the Map View window, used to control the display, and access other tools in the software, as well as an active dialog box, used to select well. Some of the tools can also be accessed from the menus.

By default, the toolbars are visible. To remove a toolbar, from the View menu, select Toolbars, and then select a specific toolbar. To restore the toolbars to their default locations, from the View menu, select Toolbars, and then select Reset Toolbars. Move the Main, View, Mode, and Actions toolbars by clicking on the left-most edge, and dragging them to a new location. Move the Well List dialog box by clicking on the title bar and docking it in a new location.

Main Toolbar

The Main toolbar is used to save changes to your project and create hard or digital copies of the display.

View Toolbar

The View toolbar is used to reset the display

Mode Toolbar

The Mode toolbar is used to enter specific interpretation modes, for example selection mode and inter-well pick mode.

Actions Toolbar

The Actions toolbar has a variety of functions, including setting hardcopy options, scrolling through attribute and log curve displays, and enabling Cascade Technology™.

Buttons Toolbar

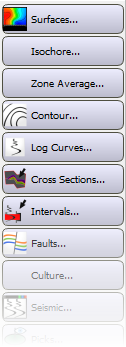

The Buttons toolbar is used to open data selection dialog boxes, and set the general display properties for the display.

Well List Active Dialog Box

The Well List active dialog box is used to make well selections, and apply well selections to the 3D View and Well View windows.
