Time/Depth Velocity Modeling: Select Wells

The Select Wells tab in the Time/Depth Properties dialog box is used to select the wells to use in the calculation. The well data may also be used to define the bounds of the calculation. Once you have completed the time/depth calculation, you can remove well data from individual layers from the Well Data Points dialog box.

Select Wells

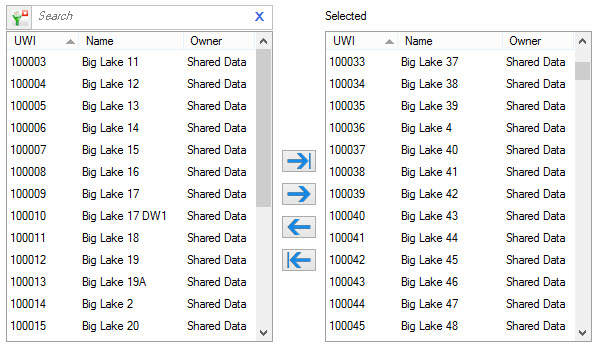

Select the wells that you want to use in the calculation. Use the Ctrl key on your keyboard to select multiple wells, and then use the selection arrows to move the wells to the Selected list. Alternately, you can select a group of wells from the Basemap.

To help you make your well selections, sort any column by left clicking on the column header, apply a filter (), or type a search string into the search bar to limit the list using UWI, Name, or Owner information.

For additional selection and navigation options right click on the wells list to access the shortcut menu.

Also See

• Well Properties
