Seismic Analysis: Gabor Parameters
The Gabor Parameters page will be present if any Gabor Morlet
parameters have been selected.

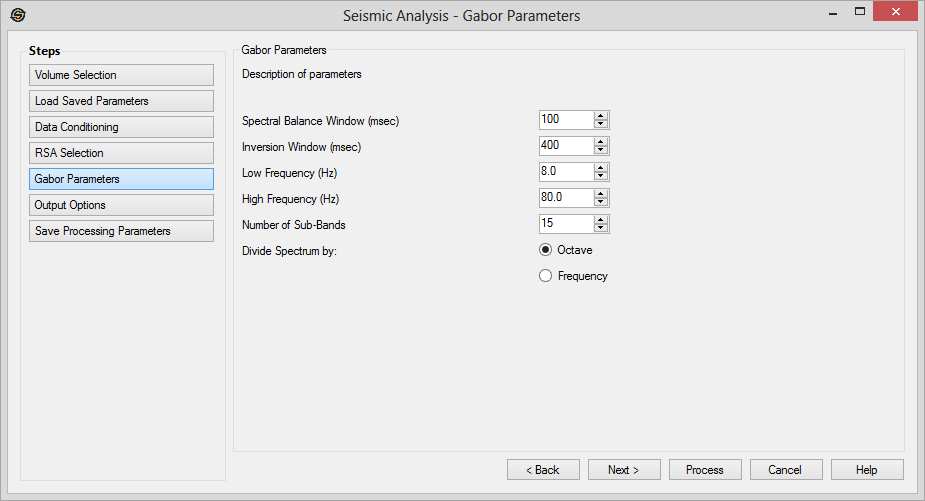

Gabor Parameters
Spectral Balance Window
(msec):The size of the window over
which frequencies will be balanced at any given moment.
Inversion Window (msec): The size of the window over which inversion will be performed.
Low Frequency (Hz):The lower bound of the frequency range to dissect.
High Frequency (Hz): The upper bound of the frequency range to dissect.
Number of Sub-Bands: The number of sub-frequency volumes to calculate.
Divide Spectrum by:The method to determine what sub-band frequencies should be calculated (Octave produces a geometric series of frequencies, linear creates a linear series).
