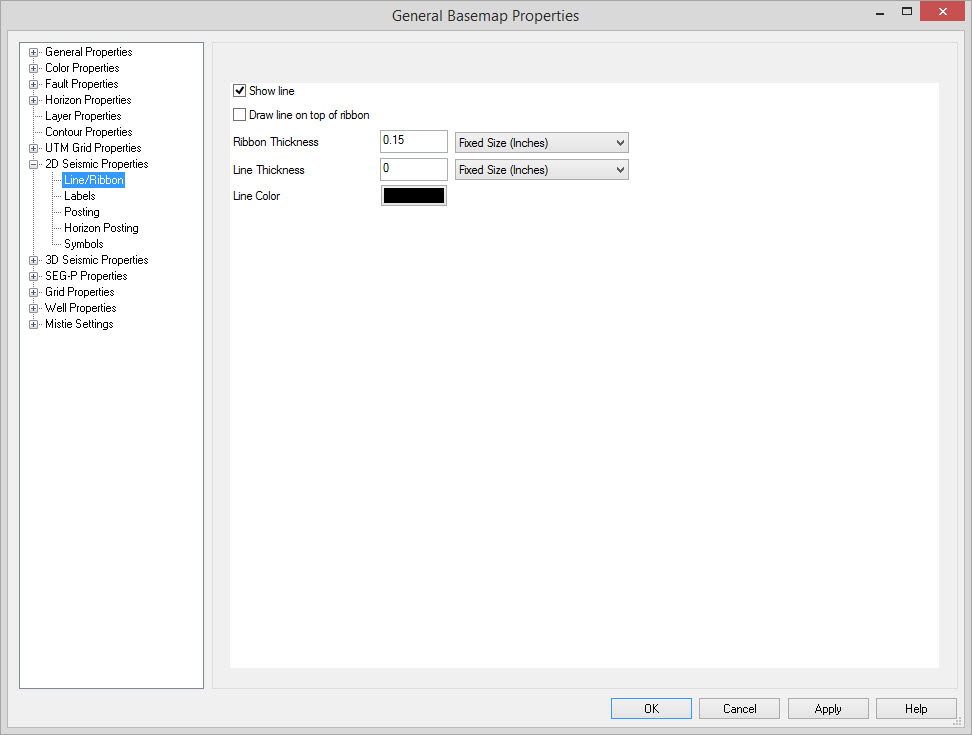

2D Seismic Properties: Line/Ribbon
Use these settings to configure the appearance of 2D lines and their horizons on the map.
Enable Line
Show Line: Draws the 2D survey line for
lines displayed on the map.
Line Parameters
Draw line on top of
ribbon: If selected,
when a horizon ribbon is being displayed for a line, the survey line is
shown. If turned off, horizon ribbons will hide the survey line.
Ribbon Thickness: Specifies the thickness of horizon ribbons drawn for 2D lines.
Line Thickness: Specifies the thickness of the 2D survey line drawn. Note: For the fastest drawing speed set the thickness to zero.
Line Color: Specifies the color of the 2D survey line drawn.
Ribbon Thickness: Specifies the thickness of horizon ribbons drawn for 2D lines.
Line Thickness: Specifies the thickness of the 2D survey line drawn. Note: For the fastest drawing speed set the thickness to zero.
Line Color: Specifies the color of the 2D survey line drawn.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
