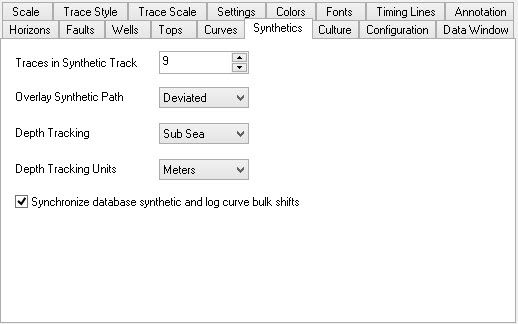

Trace in Synthetic Track: Specify the number of traces to display for an inserted SEG-Y synthetic.

Overlay Synthetic Path: Specify how to display overlay synthetics for deviated wells.

Depth Tracking: Choose whether to track true vertical or subsea depths.

Depth Tracking Units: Choose the units for tracking depth values, either meters or feet.

Synchronize database synthetic and log curve bulk shifts: When checked, displayed curves will be shifted after bulk shifting an inserted synthetic track.  In addition synthetic tracks will be bulk shifted when curves are shifted vertically.  If toggled off the user can move curves and synthetics independently in order to align well tops for the two different types of data.  Note: This does not apply to generated synthetics, only to synthetics that have been stored in the database.
