Cross Section Viewer: Data Selection

The Data Selection dialog box allows you to add and remove data from the Object Tree. To open the dialog box, right click on any data type in the tree (Wells, Formations, Grids, and Seismic) or in the main display area, and select Data Selection. When data is added to the scene, by default it will be visible.

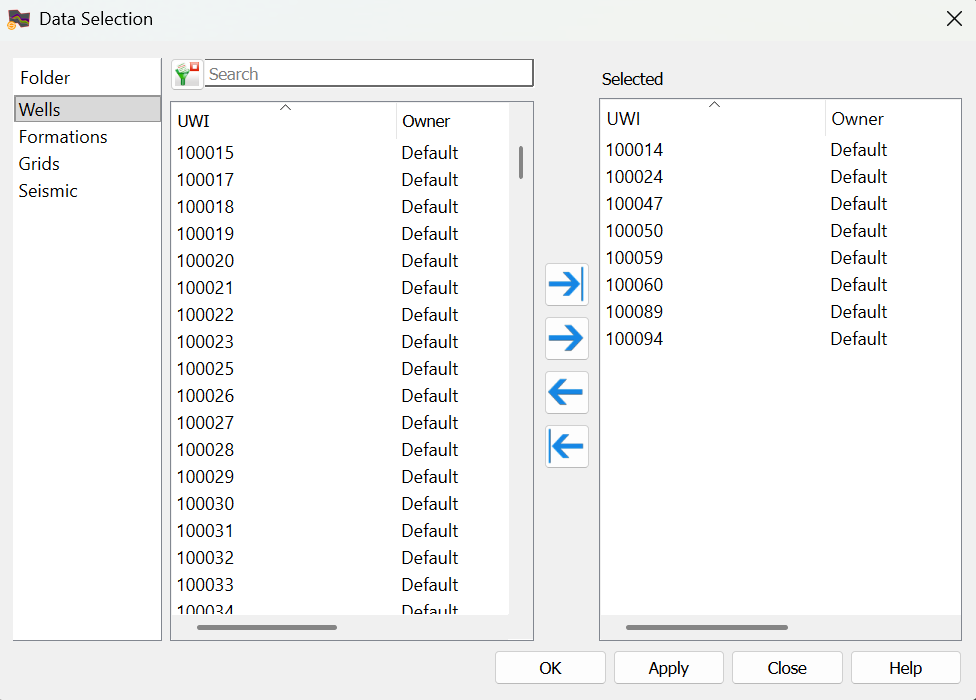

Data Selection

Select a Folder, and then select the data items that you want added to the scene. Left click to select a data item, or left click while pressing the Ctrl key on your keyboard to select multiple data items, and then use the selection arrows to move the items to the Selected list. To help you make your selections, use the search bar to limit the items available in the list, or apply a filter (), only available for well selection.

Note:Only a single seismic volume can be selected for display in a cross section.
