SEG-Y to 3dr

Seismic Tools: SEG-Y to 3dr

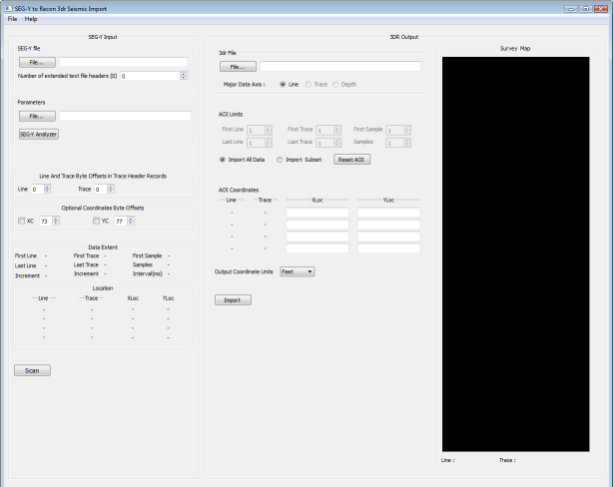

Use the SEG-Y to 3dr Seismic Import dialog box to convert SEG-Y files to .3dr seismic files. To perform this operation, the SEG-Y file must have an associated parameter file, created in the SEG-Y Analyzer.

Convert Files

Parameters: Select the associated parameter file, or click to open the SEG-Y Analyzer and create a parameter file.

Scan: Scan the file to view and verify the Offset, Data Extent, and Location information.

3dr File: Browse to a folder location and enter a name for the output file.

AOI Limits: Select Import All Data, or define the limits by selecting Import Subset, and then entering Line, Trace, and Sample extents.

Output Coordinate Units: Specify the coordinate units of the output file. Choose from Feet or Meters.

Import: Convert the file to .3dr format and attach the file to the project.
