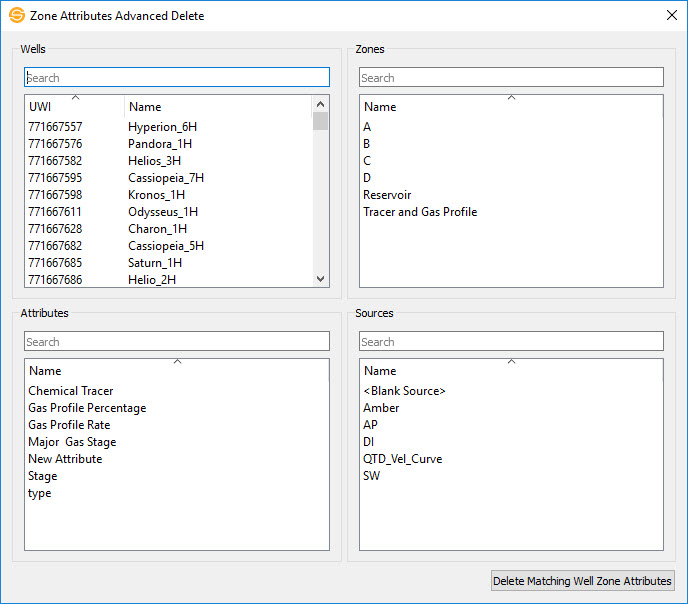

Zone Attributes Advanced Delete

The Zone Attributes Advanced Delete dialog allows you to delete multiple zone attributes from multiple wells, zones, and sources from the database.

General Properties

Selection Lists

Before you can delete Well Zone Attributes, you need to select items from Attributes, Wells, Zones, and/or Sources. You can limit the information available in each list by typing in the search bar.

Wells: A list of wells available in your project.

Zones: A list of zones available in your project.

Attributes: A list of zone attributes available in your project.

Sources: A list of sources associated with the project.

Operations

Delete Matching Well Zone Attributes: Deletes matching well zone attributes from the database based on your selections. Keep in mind that you need to make a selection in at least one of the Selection Lists in order to run an operation. A few examples:

Delete an attribute from a zone for all wells and sources: Select the attribute and the zone of interest, then leave wells and sources unselected. You can also select the attribute and zone of interest and select all wells and sources.

Delete all attributes from all zones for specific wells and sources: Select the wells and sources needed, then leave attributes and zones unselected. You can also select the wells and sources needed, then select all attributes and zones.
