Seismic Display Properties: Trace Style

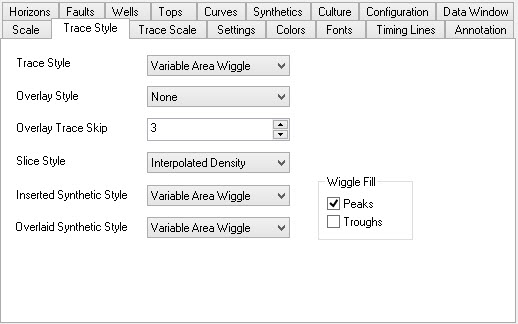

The Trace Style page is used to set the visual appearance of the traces in the seismic display.

Trace Parameters

Trace Style: Used to specify the visual style of the traces in the display. Styles are selected from the following:

Wiggle: Displays the data in wiggle trace only.

Variable Area: Displays the data with wiggle fills only.

Variable Area Wiggle: Displays the data with both wiggle traces and filled peaks/troughs.

Variable Density: Displays the data as variable color bands representing the data amplitudes.

Interpolated Density: Displays the data as variable color bands points representing the data amplitudes. Similar to Variable Density but produces a much smoother looking display.

Overlay Parameters

Overlay Style: Used to specify a visual overlay for the trace. This attribute is only used when the Trace Style is set to either "Variable Density" or "Interpolated Density". If set to something other than "None" an overlay will be drawn on top of the density display.

Overlay Trace Skip: Specifies a trace spacing for the wiggle overlay. Only meaningful when the Trace Style is set to either "Variable Density" or "Interpolated Density" and the Overlay Style is set to something other than "None". A trace will be rendered at each specified trace. For example, if the value is set to 5 you will see an overlay trace on only every fifth trace.

Slice Parameters

Slice Style: Specifies the trace style for slice displays. Styles are the same as the Trace Style options.

Synthetic Parameters

Inserted Synthetic Style: Specifies the trace style for inserted synthetic tracks. If set to "Same As Seismic" it will use the same trace style as the main seismic display. However, you can set the style independently to be any of the options found in the main Trace Style.

Overlaid Synthetic Style: Specifies the trace style for overlay synthetics.

Wiggle Fill Parameters

Peaks:Fill peak values when the Trace Style or Overlay Style are set to "Variable Area" or "Variable Area Wiggle".

Troughs: Fill trough values when the Trace Style or Overlay Style are set to "Variable Area" or "Variable Area Wiggle".
