Log Editor: Line Between Points

Straight Line Between Two Points

Draw a straight line between two points on a curve.

How To Draw a Line Between Points

1. Select the curve for editing by clicking on it.


2. Click the Straight Line Between Two Points icon .

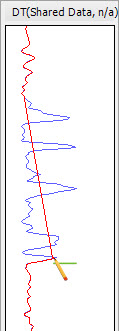

3. Draw the line by pressing and holding the left mouse button down at the start of the line dragging out to the end of the line. You will see the changes appear in the highlight color and it will appear stacked with your unedited portion of the curve. In the image below, the highlight color is red.


4. Release the button to apply the changes. Note: Use undo to restore to the previous state.


5. Save changes by pressing the right mouse button on the track and selecting Save from the shortcut menu, or by selecting the   on the toolbar. Type in a Curve Name (optional Source and Description) and click OK.  Note: You can overwrite an existing curve by leaving the curve name the same as the input.
