Log Editor: Clip Right

Clip Curve Right of Value

Removes all values that are above a specific value.

How to Clip Right of a Value

1. Select the curve for editing by clicking on it.


2. Click the Clip Curve Right of Value icon .

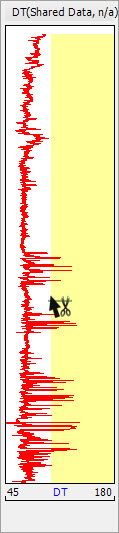

3. Left click on the curve and then select clip value. All data with values to the right of the location will be clipped. Note: use undo to restore to the previous state.

4. Save changes by pressing the right mouse button on the track and selecting Save from the shortcut menu, or by selecting the   on the toolbar. Type in a Curve Name (optional Source and Description) and click OK.  Note: You can overwrite an existing curve by leaving the curve name the same as the input.
