3D View Tools: Seismic Domain

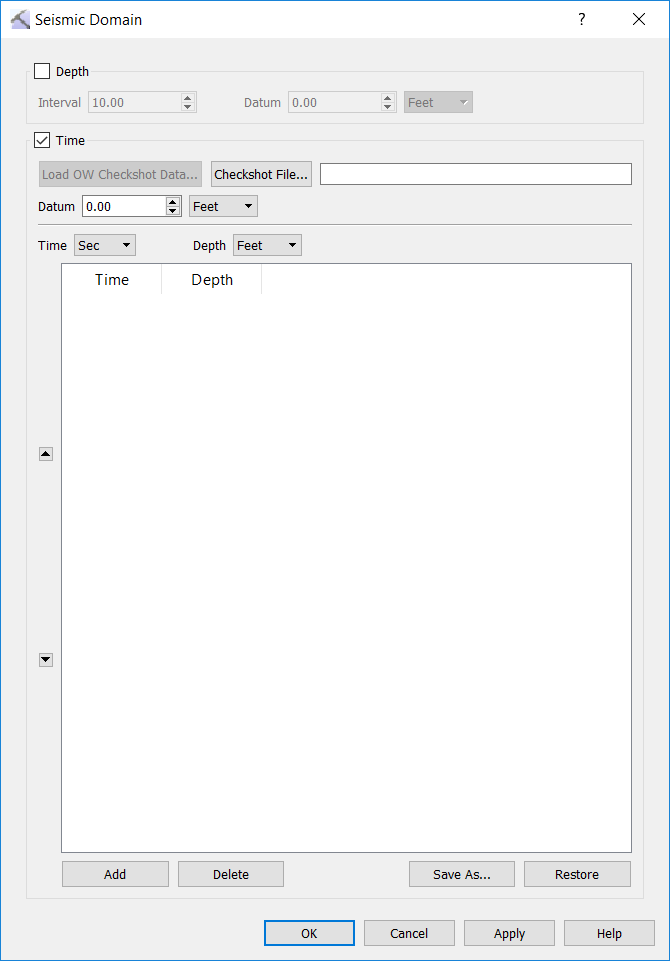

The Seismic Domain dialog box is used to specify the domain for 2D seismic data within your project.
Domain Options
Depth: Select this option when you are displaying data recorded in depth.
Interval: Enter the sample interval of the data being displayed.
Datum: Specify the depth datum of the data being displayed, and specify the units. Note: Changing the units will not convert the file values.
Time: Select this option when you are displaying data recorded in time. You will need a checkshot file to convert time values into depth. Once loaded, you can view and edit the values in the file.
Load OpenWorks Checkshot data: Select a checkshot file from OpenWorks.
Checkshot File: Select a checkshot file (.ckshot). The data will appear in the table, where it can be viewed and edited.
Datum: Specify the depth datum of the data being displayed, and specify the units. Note: Changing the units will not convert the file values.
Time: Select the units used for the time values in the checkshot file.
Depth: Select the units used for the depth values in the checkshot file.
Add: Add a new row to the table.
Delete: Remove the selected row from the table.
Save As: Save changes to a new checkshot file (.cksht).
Restore: Undo all changes since the last save.
